Build a full Sorting pipeline with dicts
When using SpikeInterface there are two phases. First, you should
play: try to figure out any special steps or parameters you need to play
with to get everything working with your data. Once you’re happy, you
then need to build a sturdy, consistent pipeline to process all your
ephys sessions.
It is now possible to create a flexible spike sorting pipeline using
three simple dictionaries: one for preprocessing (and the
PreprocessingPipeline), another for sorting (and run_sorter),
and a final one for postprocessing (and the compute method). Here’s
an example:
import spikeinterface.full as si
my_protocol = {
'preprocessing': {
'bandpass_filter': {},
'common_reference': {'operator': 'average'},
'detect_and_remove_bad_channels': {},
},
'sorting': {
'sorter_name': 'mountainsort5',
'verbose': False,
'snippet_T2': 15,
'remove_existing_folder': True,
'progress_bar': False
},
'postprocessing': {
'random_spikes': {},
'noise_levels': {},
'templates': {},
'unit_locations': {'method': 'center_of_mass'},
'spike_amplitudes': {},
'correlograms': {},
},
}
# Usually, you would read in your raw recording
rec, _ = si.generate_ground_truth_recording(num_channels=4, durations=[60], seed=0)
preprocessed_rec = si.apply_preprocessing_pipeline(rec, my_protocol['preprocessing'])
sorting = si.run_sorter(recording=preprocessed_rec, **my_protocol['sorting'])
analyzer = si.create_sorting_analyzer(recording=preprocessed_rec, sorting=sorting)
analyzer.compute(my_protocol['postprocessing'])
detect_bad_channels (no parallelization): 0%| | 0/100 [00:00<?, ?it/s]
write_binary engine=process - n_jobs=1 - samples_per_chunk=25,000 - chunk_memory=292.97 KiB - total_memory=292.97 KiB - chunk_duration=1.00s Using training recording of duration 300 sec with the sampling mode uniform * MS5 Elapsed time for SCHEME2 get_sampled_recording_for_training: 0.000 seconds * Running phase 1 sorting Number of channels: 3 Number of timepoints: 1500000 Sampling frequency: 25000.0 Hz Channel 0: [0. 0.] Channel 1: [ 0. 20.] Channel 2: [20. 20.] Loading traces * MS5 Elapsed time for load_traces: 0.009 seconds * Detecting spikes Adjacency for detect spikes with channel radius 200 [[0, 1, 2], [0, 1, 2], [0, 1, 2]] m = 0 (nbhd size: 3) m = 1 (nbhd size: 3) m = 2 (nbhd size: 3) Detected 2638 spikes * MS5 Elapsed time for detect_spikes: 0.025 seconds * Removing duplicate times * MS5 Elapsed time for remove_duplicate_times: 0.000 seconds * Extracting 2638 snippets * MS5 Elapsed time for extract_snippets: 0.005 seconds * Computing PCA features with npca=9 * MS5 Elapsed time for compute_pca_features: 0.008 seconds * Isosplit6 clustering with npca_per_subdivision=10 Found 5 clusters * MS5 Elapsed time for isosplit6_subdivision_method: 0.053 seconds * Computing templates * MS5 Elapsed time for compute_templates: 0.003 seconds * Determining optimal alignment of templates Template alignment converged. Align templates offsets: [ 5 4 -2 -4 -3] * MS5 Elapsed time for align_templates: 0.003 seconds * Aligning snippets * MS5 Elapsed time for align_snippets: 0.000 seconds * Clustering aligned snippets Computing PCA features with npca=9 * MS5 Elapsed time for compute_pca_features: 0.001 seconds * Isosplit6 clustering with npca_per_subdivision=10 * MS5 Elapsed time for isosplit6_subdivision_method: 0.041 seconds * Found 4 clusters after alignment Computing templates * MS5 Elapsed time for compute_templates: 0.003 seconds * Offsetting times to peak Offsets to peak: [ 5 -2 -4 -3] * MS5 Elapsed time for determine_offsets_to_peak: 0.000 seconds * Sorting times * MS5 Elapsed time for sorting times: 0.000 seconds * Removing out of bounds times * MS5 Elapsed time for removing out of bounds times: 0.000 seconds * Reordering units * MS5 Elapsed time for reordering units: 0.000 seconds * Creating sorting object * MS5 Elapsed time for creating sorting object: 0.000 seconds * * MS5 Elapsed time for SCHEME2 sorting_scheme1: 0.151 seconds * * MS5 Elapsed time for SCHEME2 get_times_labels_from_sorting: 0.000 seconds * Loading training traces * MS5 Elapsed time for SCHEME2 training_recording.get_traces: 0.002 seconds * Training classifier * MS5 Elapsed time for SCHEME2 training classifier step 1: 0.001 seconds * Adding snippets from phase 1 sorting Fitting models * MS5 Elapsed time for SCHEME2 fitting models: 0.005 seconds * Chunk size: 1333.33336 sec Time chunk 1 of 1 Loading traces * MS5 Elapsed time for SCHEME2 loading traces: 0.000 seconds * Detecting spikes Adjacency for detect spikes with channel radius 50 [[0, 1, 2], [0, 1, 2], [0, 1, 2]] Scheme 2 detected 2638 spikes in chunk 1 of 1 * MS5 Elapsed time for SCHEME2 detecting spikes: 0.020 seconds * Extracting and classifying snippets * MS5 Elapsed time for SCHEME2 extracting and classifying snippets: 0.009 seconds * Updating events Removing duplicates * MS5 Elapsed time for SCHEME2 updating events: 0.001 seconds * Concatenating results * MS5 Elapsed time for SCHEME2 concatenating results: 0.000 seconds * Perorming label mapping * MS5 Elapsed time for SCHEME2 label mapping: 0.000 seconds * Creating sorting object * MS5 Elapsed time for SCHEME2 creating sorting object: 0.000 seconds *
estimate_templates (no parallelization): 0%| | 0/60 [00:00<?, ?it/s]
noise_level (no parallelization): 0%| | 0/20 [00:00<?, ?it/s]
estimate_templates_with_accumulator (no parallelization): 0%| | 0/60 [00:00<?, ?it/s]
Compute : spike_amplitudes (no parallelization): 0%| | 0/60 [00:00<?, ?it/s]
This is a full and flexible spike sorting pipeline in 5 lines of code!
To try out a different pipeline, you only need to update your protocol dicts.
Once you have an analyzer, you can then do things with it:
analyzer.save_as(folder="my_analyzer")

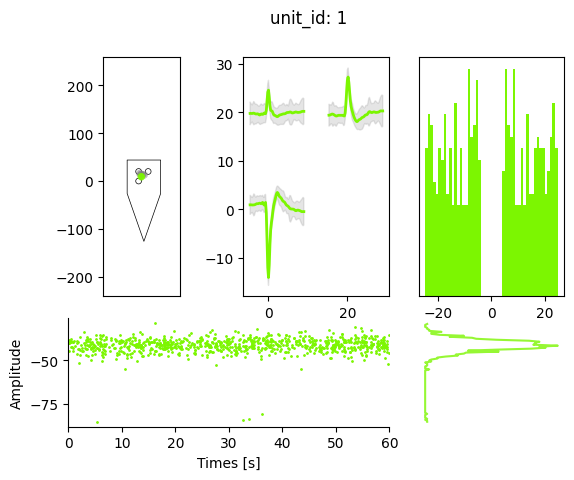

si.plot_unit_summary(analyzer, unit_id=1)
The main disadvantage of the dictionaties approach is that you don’t know exactly what options and steps are available for you. You can search the API for help. Or we store many dictionaries of tools and parameters, as is shown below.
Get all preprocessing steps:
from spikeinterface.preprocessing.pipeline import pp_names_to_functions
print(pp_names_to_functions.keys())
dict_keys(['filter', 'bandpass_filter', 'highpass_filter', 'notch_filter', 'gaussian_filter', 'normalize_by_quantile', 'scale', 'center', 'zscore', 'scale_to_physical_units', 'whiten', 'common_reference', 'phase_shift', 'detect_and_remove_bad_channels', 'detect_and_interpolate_bad_channels', 'detect_and_remove_artifacts', 'rectify', 'clip', 'blank_saturation', 'silence_periods', 'remove_artifacts', 'zero_channel_pad', 'deepinterpolate', 'resample', 'decimate', 'highpass_spatial_filter', 'interpolate_bad_channels', 'depth_order', 'average_across_direction', 'directional_derivative', 'astype', 'unsigned_to_signed'])
You can then check the arguments of each preprocessing step using
e.g. their docstrings (in Jupyter you can run si.bandpass_filter?
and in the terminal help(si.bandpass_fitler))
print(si.bandpass_filter.__doc__)
Bandpass filter of a recording
Parameters
----------
recording : Recording
The recording extractor to be re-referenced
freq_min : float
The highpass cutoff frequency in Hz
freq_max : float
The lowpass cutoff frequency in Hz
margin_ms : float | str, default: "auto"
Margin in ms on border to avoid border effect.
If "auto", margin is computed as 3 times the filter highpass cutoff period.
dtype : dtype or None
The dtype of the returned traces. If None, the dtype of the parent recording is used
ignore_low_freq_error : bool, default: False
If True, does not raise an error if freq_min is too low for the sampling frequency.
**filter_kwargs : dict
Certain keyword arguments for scipy.signal filters:
filter_order : order
The order of the filter. Note as filtering is applied with scipy's
filtfilt functions (i.e. acausal, zero-phase) the effective
order will be double the filter_order.
filter_mode : "sos" | "ba", default: "sos"
Filter form of the filter coefficients:
- second-order sections ("sos")
- numerator/denominator : ("ba")
ftype : str, default: "butter"
Filter type for scipy.signal.iirfilter e.g. "butter", "cheby1".
Returns
-------
filter_recording : BandpassFilterRecording
The bandpass-filtered recording extractor object
Get the default sorter parameters of mountainsort5:
print(si.get_default_sorter_params('mountainsort5'))
{'scheme': '2', 'detect_threshold': 5.5, 'detect_sign': -1, 'detect_time_radius_msec': 0.5, 'snippet_T1': 20, 'snippet_T2': 20, 'npca_per_channel': 3, 'npca_per_subdivision': 10, 'snippet_mask_radius': 250, 'scheme1_detect_channel_radius': 150, 'scheme2_phase1_detect_channel_radius': 200, 'scheme2_detect_channel_radius': 50, 'scheme2_max_num_snippets_per_training_batch': 200, 'scheme2_training_duration_sec': 300, 'scheme2_training_recording_sampling_mode': 'uniform', 'scheme3_block_duration_sec': 1800, 'freq_min': 300, 'freq_max': 6000, 'filter': True, 'whiten': True, 'whitening_seed': None, 'delete_temporary_recording': True, 'pool_engine': 'process', 'n_jobs': 1, 'chunk_duration': '1s', 'progress_bar': True, 'mp_context': None, 'max_threads_per_worker': 1}
Find the possible extensions you can compute
print(analyzer.get_computable_extensions())
['random_spikes', 'waveforms', 'templates', 'noise_levels', 'amplitude_scalings', 'correlograms', 'auto_correlograms', 'isi_histograms', 'principal_components', 'spike_amplitudes', 'spike_locations', 'template_similarity', 'unit_locations', 'valid_unit_periods', 'quality_metrics', 'template_metrics', 'spiketrain_metrics']
And the arguments for each extension ‘blah’ can be found in the docstring of ‘compute_blah’, e.g.
print(si.compute_spike_amplitudes.__doc__)
Computes the spike amplitudes.
Needs "templates" to be computed first.
Computes spike amplitudes from the template's peak channel for every spike.
